TR-D3151DL3 v7 3.6
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/12 500 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
DomeMaximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
3.6Net Weight (kg):
0.450 / 0.580Sensitivity(Lux):
0.0015 Lux (F1.6)Local storage:
MicroSD up to 512GBIngress protection:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
6.0WDimensions (mm):
Ø116.10 x 96.51Power consumption, Watt:
DC: 4.9W PoE: 6.0WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICR / FTCField of view:
H80˚±5˚, V56˚±5˚Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264 / MJPEG

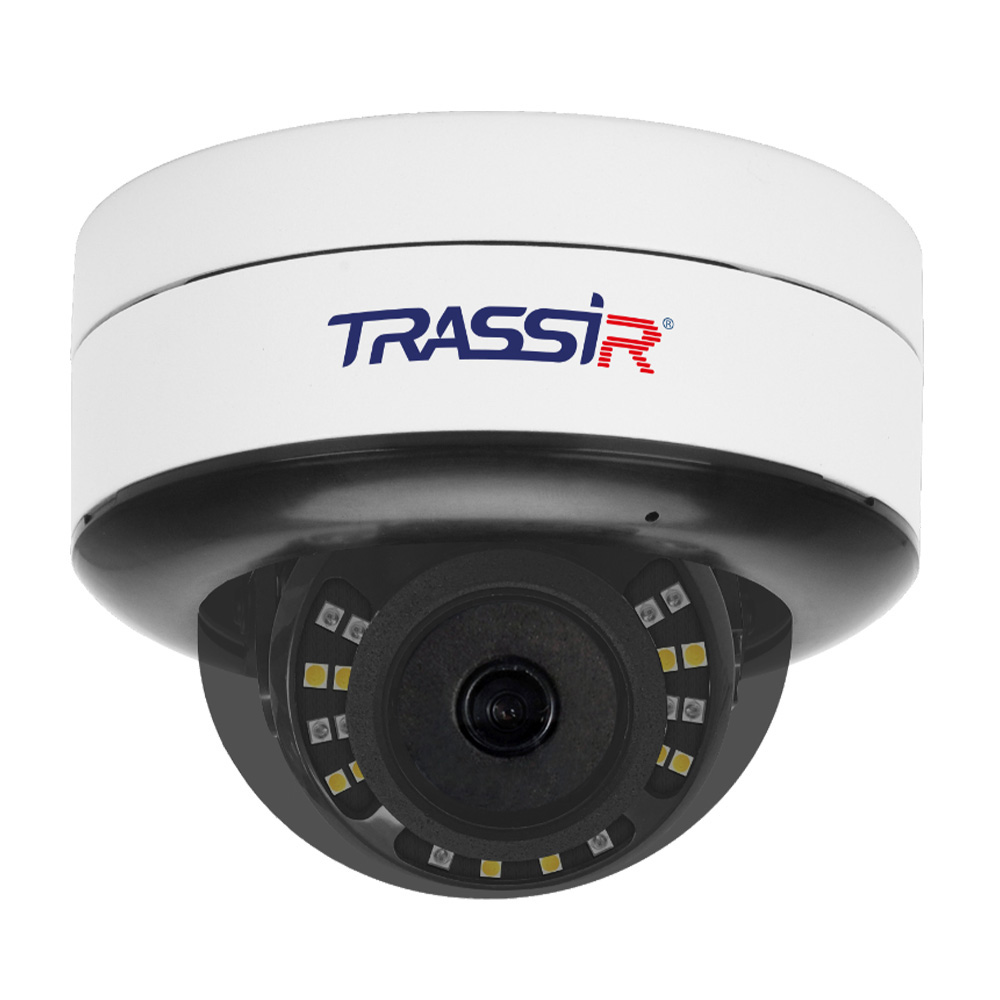

TRASSIR TR-D3151DL3 v7 3.6 is an outdoor dome camera with dual intelligent illumination designed for 24/7 video surveillance. Equipped with a 1/2.8" CMOS sensor, the camera delivers images at a maximum resolution of 5 MP (2560 × 1920). Real WDR (120 dB) and 3D DNR help maintain image quality in challenging lighting conditions. The camera features IR illumination with a range of up to 30 m and neutral-white LED illumination with a range of up to 30 m, providing clear video in low-light and nighttime conditions. Built-in hardware analytics include human detection, line-crossing detection, area monitoring, and vehicle detection.
For efficient video transmission, the camera supports H.265+, H.265, H.264, and MJPEG codecs with a maximum bitrate of 8 Mbps. A MicroSD card slot supports local recording with storage capacities of up to 512 GB. The camera can be powered via 802.3af PoE or 12 V DC. An IP66 and IK10-rated enclosure is designed for operation in temperatures from -40°C to +60°C and is equipped with TVS 4000 V protection. The camera supports a range of network protocols, including ONVIF.
TR-D3151DL3 v7 3.6.pdf
