TR-D2121DL3 v7 2.8
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/3 ~ 1/100,000 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
NoResolution:
2MPForm factor:
BulletMaximum video output resolution:
1920x1080Image sensor:
1/2.9" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.8Net Weight (kg):
0.400 / 0.465Sensitivity(Lux):
0.005Lux (F1.6)Local storage:
MicroSD up to 512GBIngress protection:
IP67IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
5.5WDimensions (mm):
Ø68 x 172.3Power consumption, Watt:
DC: 6.0W PoE: 5.5WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICR / FTCField of view:
H102.5˚, V55˚Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264+ / H.264

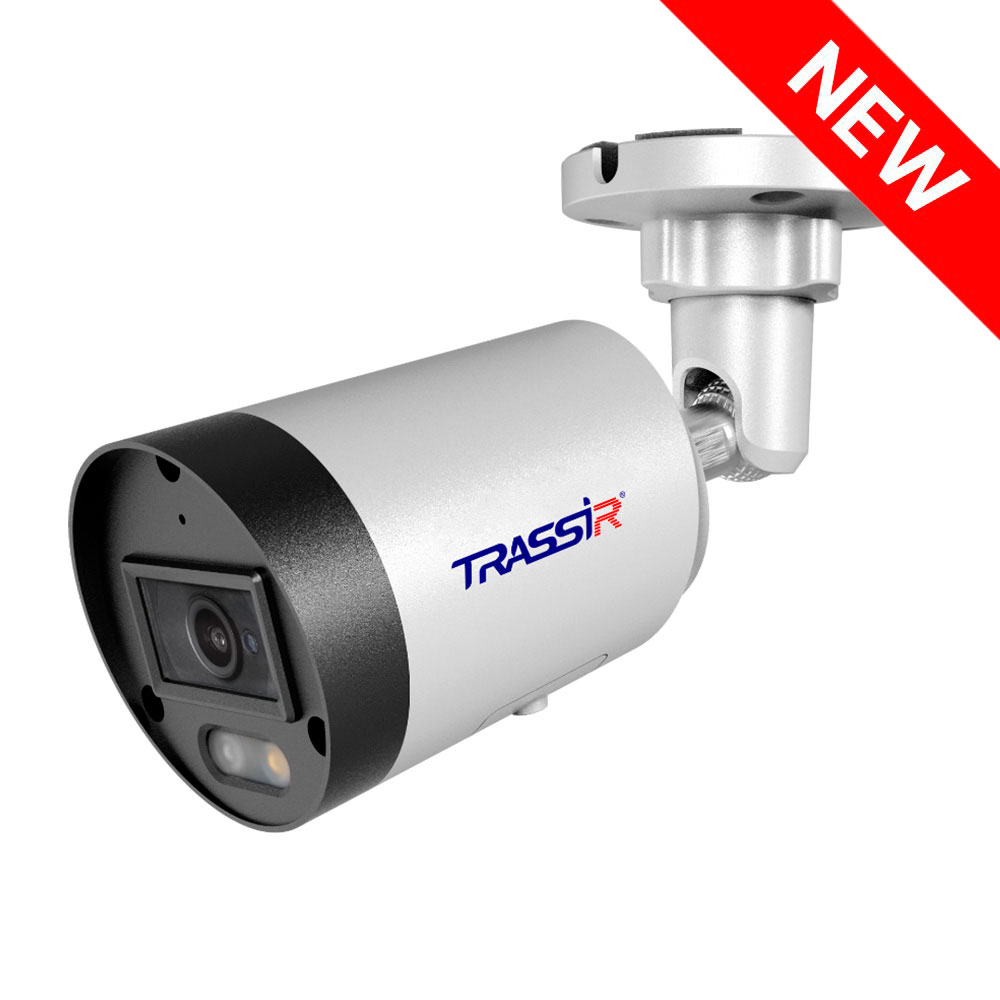

TRASSIR TR-D2121DL3 v7 2.8 is an outdoor bullet camera featuring dual intelligent illumination for 24/7 video surveillance. Equipped with a 1/2.9" CMOS sensor, it delivers up to 2 MP resolution (1920×1080). Real WDR (120 dB) and 3D DNR noise reduction ensure clear images even in challenging lighting conditions.
The camera offers IR illumination and warm white LED lighting, each with a range of up to 30 meters, enabling detailed video capture in low-light environments. It also supports hardware analytics, including people detection, line crossing detection, area monitoring, and vehicle detection.
For efficient video transmission, the camera supports H.265+ and H.264+ codecs with a maximum bitrate of 8 Mbps. Local recording is supported via a microSD card of up to 512 GB. Power can be supplied through 802.3af PoE or 12V DC.
Designed for durability, the IP67-rated enclosure operates in temperatures from -40°C to +60°C and features 6000V TVS protection. The camera is compatible with multiple network protocols, including Onvif.
TR_D2121DL3v7_passport_en.pdf
