TR-D2222WDZIR4 2.8-8

Archive

Technical specifications

WDR:

RWDR 120 dB

Resolution:

2MP

Form factor:

Bullet

Wi-Fi:

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

Power supply:

12V DC

Lens (mm):

2.7 - 13.5

Net Weight (kg):

0.460

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

183×67×64

Power consumption, Watt:

Working temperature, C°:

-40 °C… +60 °C

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45

Class PoE :

802.3af/at

Video compression:

H.265, H.265+, H.264

Overview

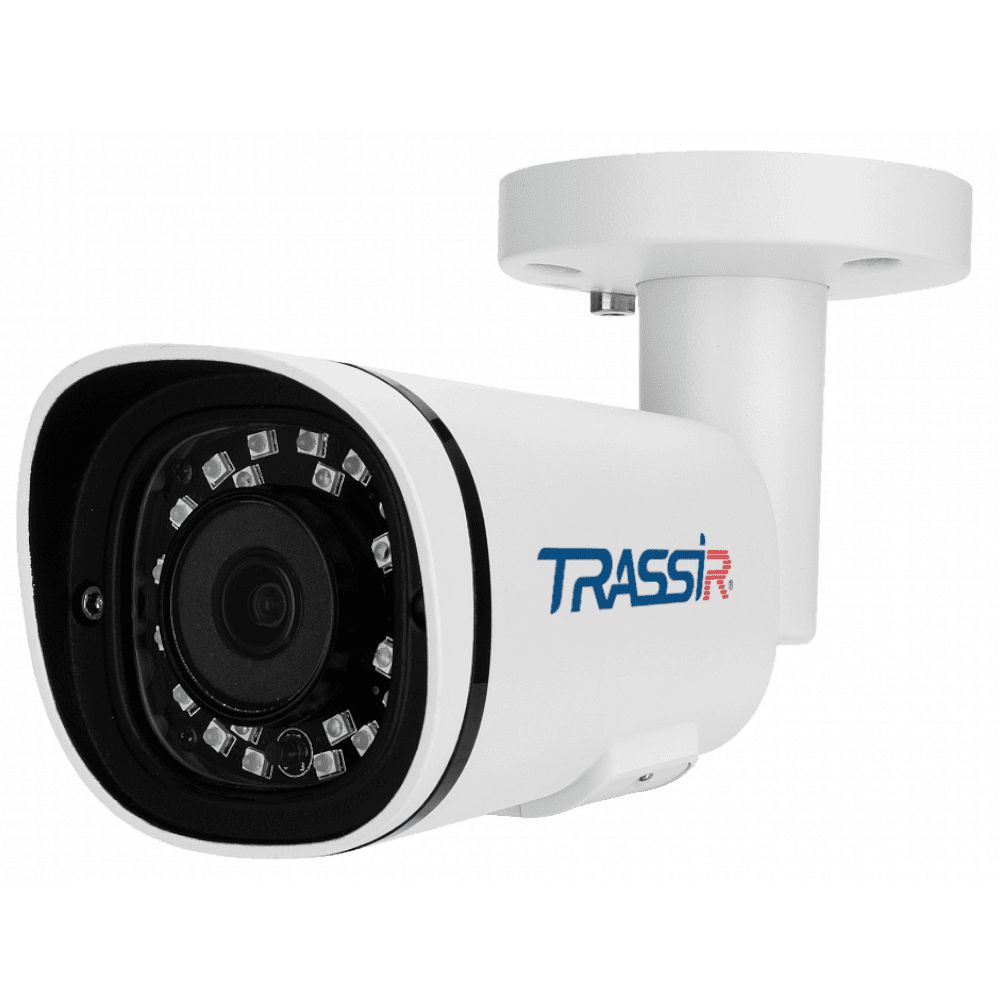

TRASSIR TR-D2222WDZIR4

2 megapixel (1920 × 1080) IP-camera is designed taking into account the conditions of round-the-clock and year-round outdoor operation: the case meets the requirements of the IP67 moisture and dust protection standard, the operating temperature range is -40 ° C ... +60 ° C, the TVS 4000V lightning protection, the range integrated IR action - 40 m. Equipped with 2.8 ~ 8.0 mm motorized lens - for almost instant picture scaling. Viewing angles: horizontal - 91-53 °, vertical - 49-30 °.

Functionality:

- WDR 120 dB - reducing the influence of difficult light conditions on image quality by double scanning with different shutter speeds (within 120 dB) and then combining the two frames into the final balanced in terms of brightness.
- 3D DNR - noise reduction, including spatial noise
- BLC - Backlight Compensation.
- HLC - local exposure masking.
- Defog - neutralization of blur introduced by fog, smoke, dusting of the scene by increasing the contrast.

Basics:

TRASSIR TR-D2222WDZIR4 compresses video with H.265, H.265 + and H.264 codecs, broadcasts data at 25 fps simultaneously with two streams - to reduce the load on the network / server. Power supply - DC 12V / PoE. Power - no more than 9 W. Dimensions - 183 × 67 × 64 mm, weight - 460 g.
